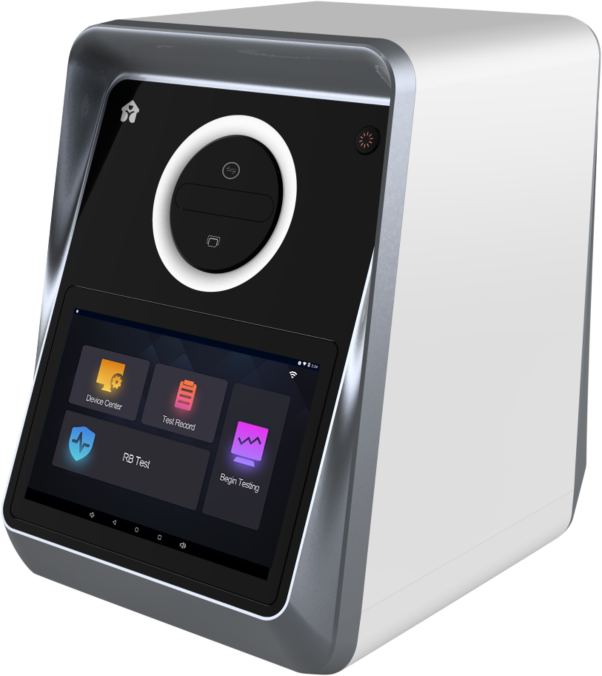

Cell Morphology Hematology Analyzer
EHBT-25
Smart. Simple. Reliable Diagnostics for Everyone.
● Low blood volume: only 40 µL required
● Integrated testing: CBM + HGB

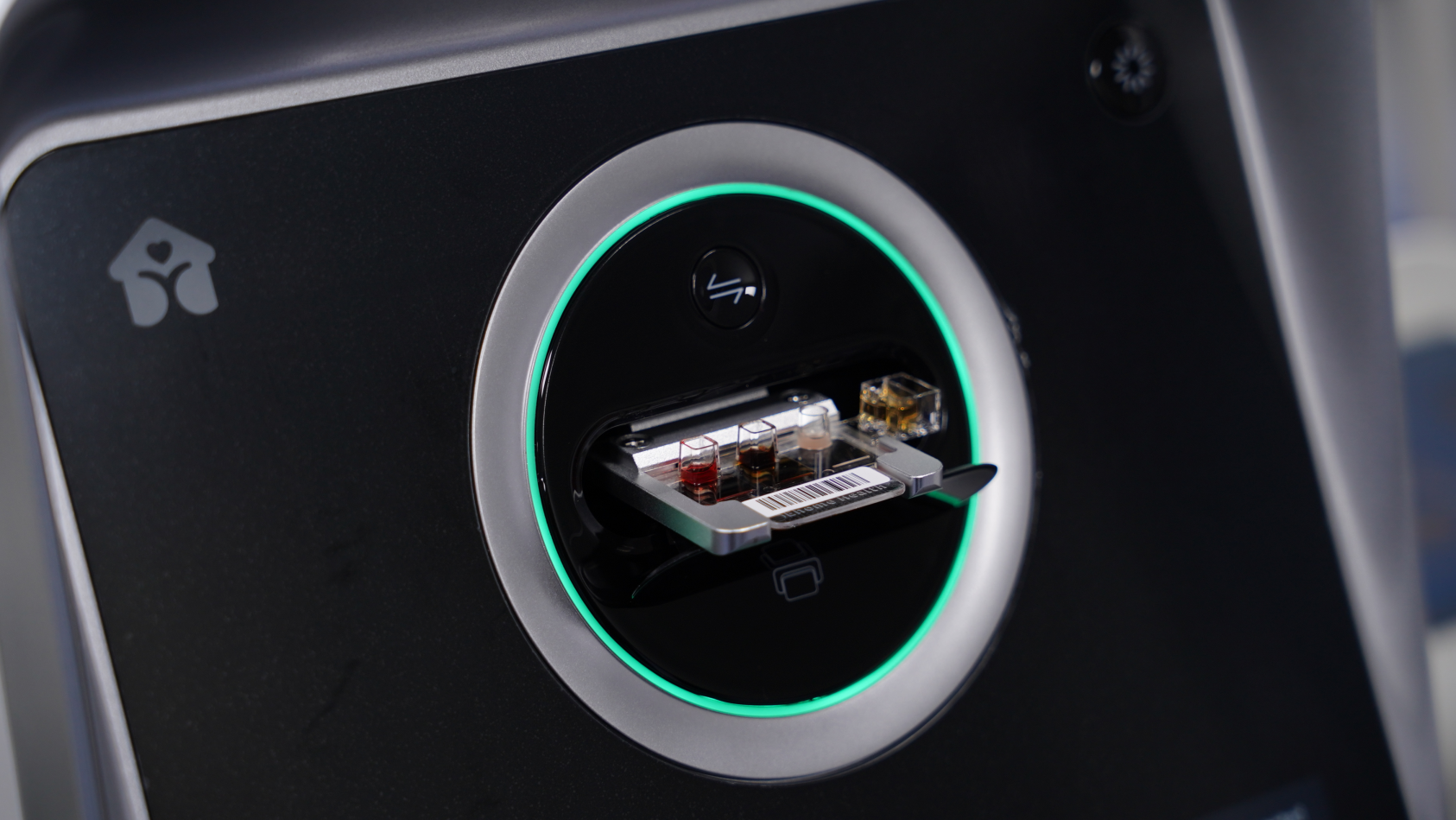

● Fully automated: loading, dilution, staining, imaging, analysis, and reporting
● AI-powered recognition: image-based cell classification and identification

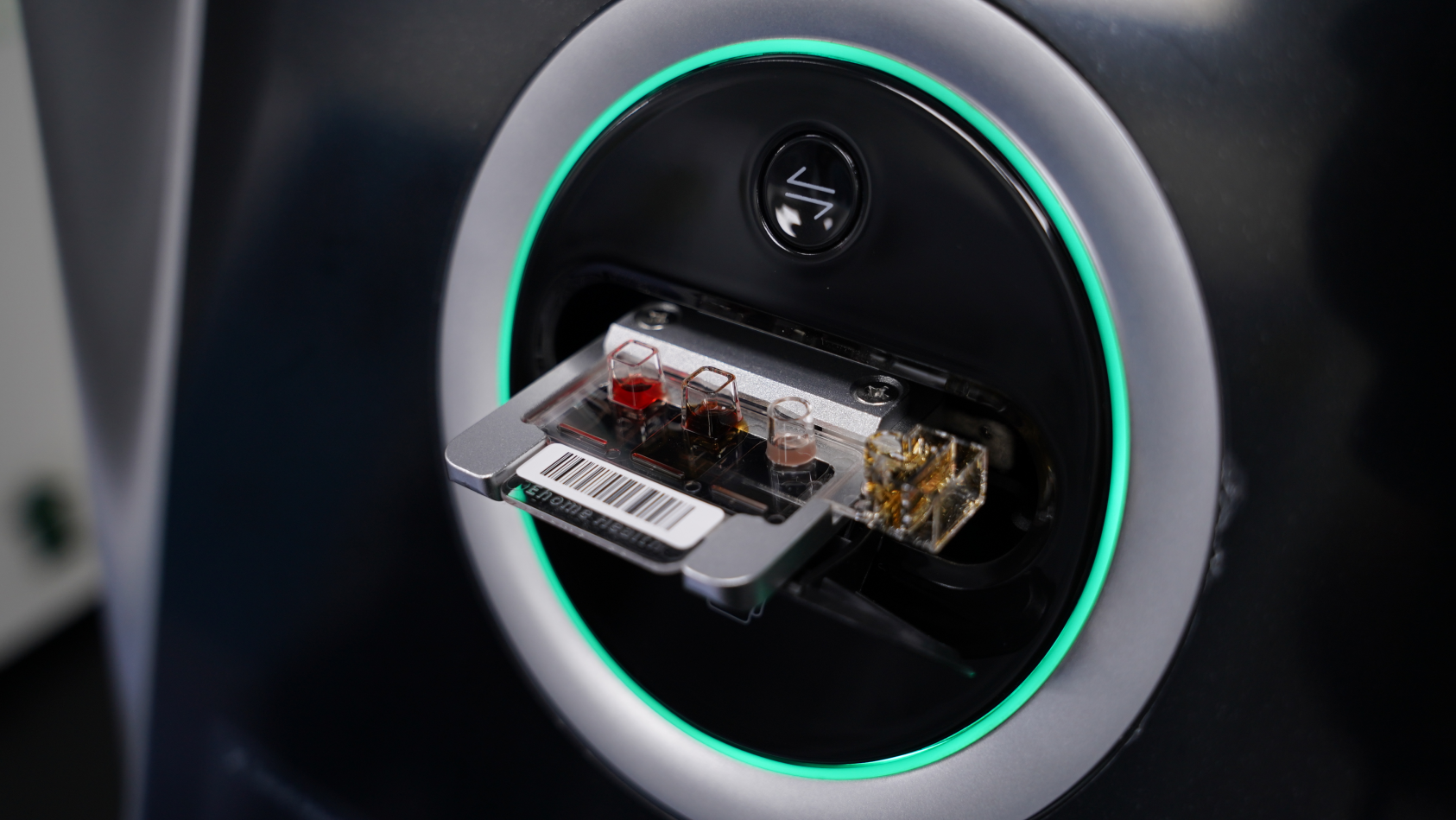

● Single-use test kits: prevent cross-contamination
● Maintenance-free: no liquid pipeline, no cleaning solution needed
Accurate Cell Classification
EHBT-25 is a 3-Diff dry-type digital cell morphological hematology analyzer, provides a real-time detection and achieves a comprehensive analysis by combining cell size, shape and structure. The photoelectric signal module and Al algorithm are integrated to improve the image quality.

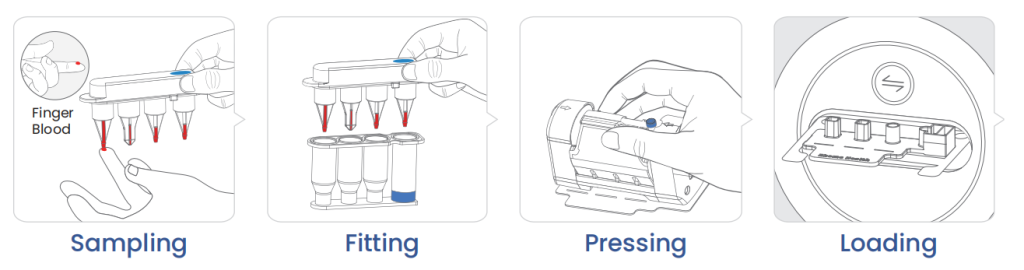

workflow
Technical Specifications
Principles
CBM: AI + Cell Morphology
HGB: Photoelectric Colorimetry
HGB: Photoelectric Colorimetry
Parameters
21 parameters including WBC, GRAN#, LYMPH#, MID#, GRAN%, LYMPH%, MID%, HGB, RBC, HCT, MCV, MCH, MCHC, RDW-SD, RDW-CV, PLT, PCT, MPV, P-LCC, P-LCR, PDW and 3 histograms (WBC, RBC, PLT)
Quality Control
Dry-type QC card
Storage
Up to 100,000 results
Power Supply
AC 100-240V 50/60Hz
Environment
Operation temperature: 5°C-40°C
Humidity: 20%-80%
Humidity: 20%-80%
Sample
Whole blood / Capillary
Sample Volume
40μL

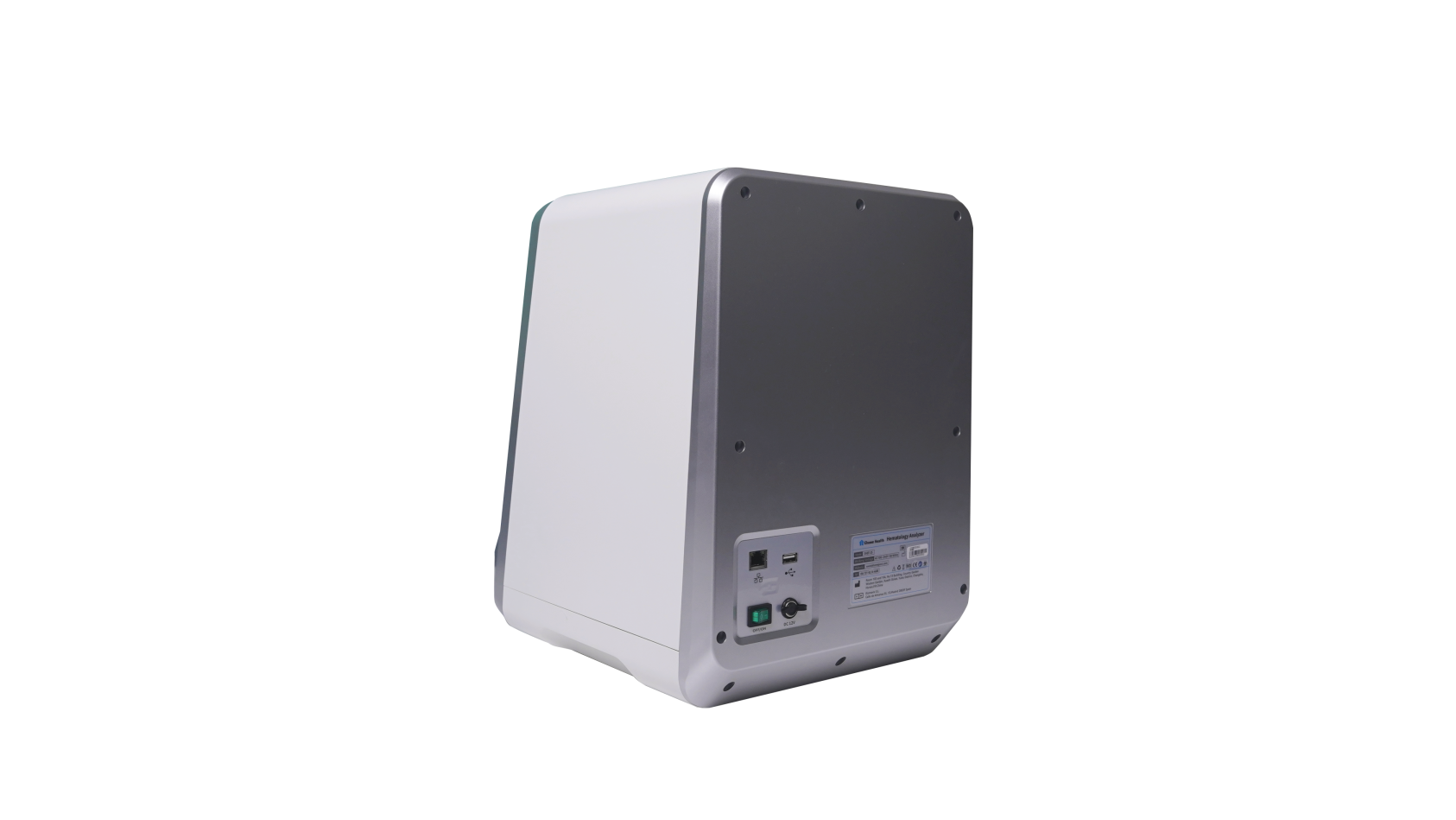

Communication
LIS, USB port
Printer
Support extenal printer
Throughput
8 samples/hour
Display
10.1-inch touchscreen
Dimensions
293mm x 357mm x 400mm
Weight
8.1kg
